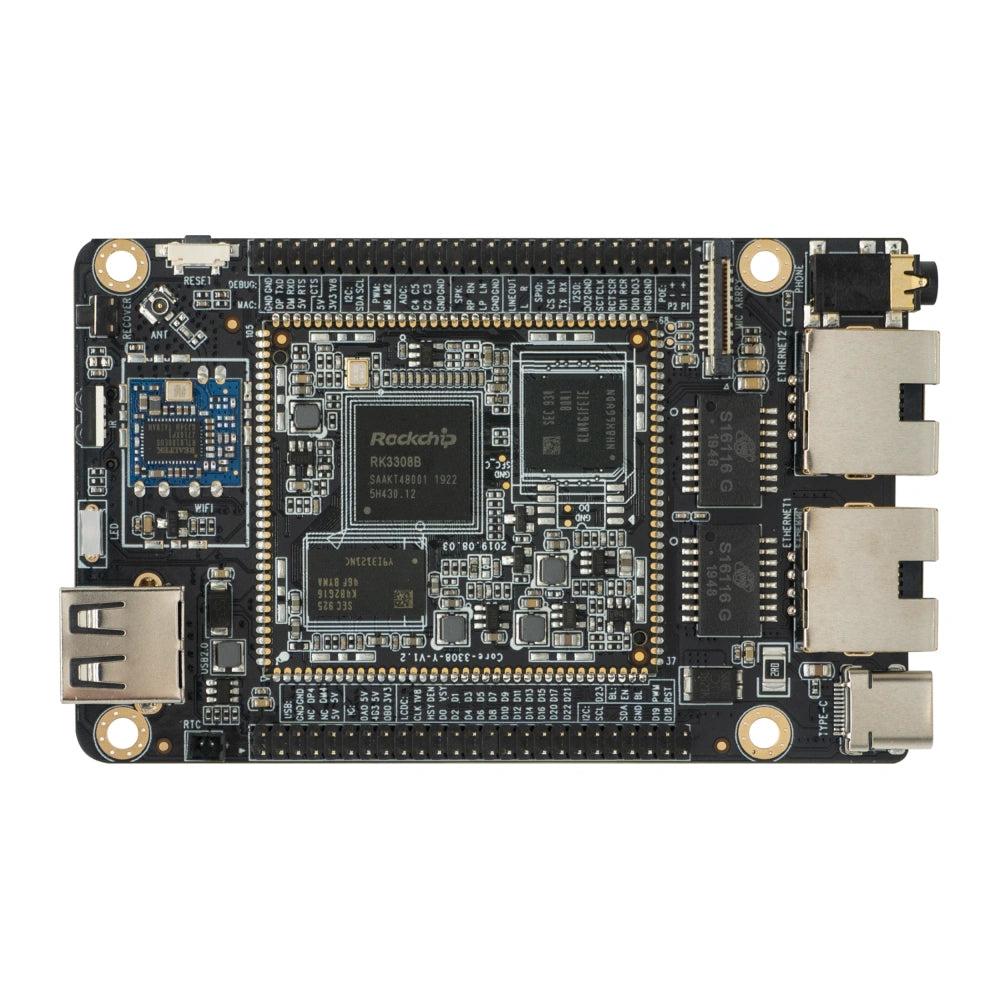

ROC-RK3308B-CC-PLUS IoT Quad-core Motherboard

Name: ROC-RK3308B-CC-PLUS IoT Quad-core Motherboard
Brand: Firefly
Price: 49.0 USD
Availability: InStock

$49.00 USD

Shipping calculated at checkout.

Brand: Firefly

Collections:

$49.00 USD

Soc	RK3308B (28nm process)
Cpu	Quad-core 64-bit ARM Cortex-A35, frequency up to 1.3GHz
Ram	256M DDR3 (128MB - 512MB)
Storage	4GB eMMC: Support 4G/8G/16G/32G/64G/128G NandFlash: Support 128MB/256MB SPI Flash: Support 16MB ~512 MB Support MicroSD (TF) Card Slot expansion
Wireless	PWM×3, I2C×3, UART×3, SPI×1, I2S×1, ADC×4, LineOut
Display	Support RGB / MCU display (up to support 720P resolution)
Audio	Built-in CODEC, including ADC x 8 Integrated high-performance Codec and Hardware VAD, support up to 8 channel analog MIC arrays directly Support digital audio interface (8CH I2S/TDM x 2, 8CH PDM, 2CH I2S/PCM)
Os	Support multiple operating systems, such as Buildroot, Linux + Mini GUI / QT, ROS(Robot Operating System) Support a variety of voice systems and services, such as iFLYTEK, Amazon Alexa, and so on
Environment	0℃ - 60℃
Ethernet	Dual RJ45 Ethernet ports (100M bps), support POE (external expansion module) POE(802.3AF, Output Power 15.4W)
Pcb	95.15 mm×60.00 mm
Usb	USB 2.0×1, Type-C×1 (OTG), USB2.0×1 (Lead-out by the pin)

Product tutorials	Click Here
Sdk software and firmware files	Click Here

Our cooperating carriers: FedEx, DHL, UPS

Delivery Area And Cost

Country/Region	0-2kg	2kg+
Japan, Taiwan, Hong Kong, Macau, Singapore, Thailand, Malaysia	$15	$15 + $5 per kg
Indonesia, Philippines	$25	$25 + $10 per kg
South Korea	$25	$25 + $5 per kg
Finland, France, Germany, Greece, Ireland, Italy, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United States, Australia, New Zealand, Austria, Belgium, Denmark	$30	$45 + $10 per kg
Canada, United Kingdom	$30	$30 + $10 per kg
Hungary, India, Israel, Laos, Myanmar, Poland, Saudi Arabia, Turkey, United Arab Emirates, Vietnam, Bangladesh, Qatar, Cyprus, Pakistan, Brunei, Sri Lanka, Jordan, Oman, Maldives, Bulgaria, Iceland, Slovakia, Lithuania, Romania, Albania, Armenia, Mexico, Nepal, Serbia, Cambodia, Croatia, Czech Republic, Slovenia	$50	$50 + $15 per kg

Shipping Time (for reference only, the actual situation shall prevail):

Order preparation time: 3-7 days (specific details need to refer to the order situation).
