EC-A3588L AI Computer Rockchip RK3588

$239.00 USD
$249.00 USD $239.00 USD
-$10.00 USD
Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Collections:
$239.00 USD
$249.00 USD $239.00 USD

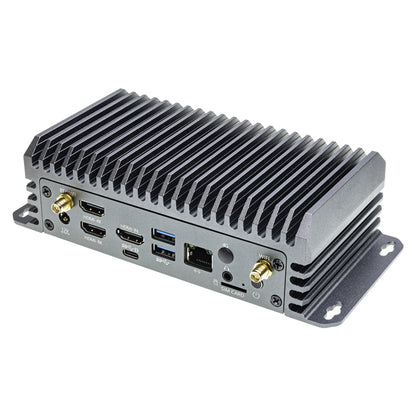

EC-A3588L adopts Rockchip's new generation flagship RK3588 series processor, with eight-core 64-bit ARM architecture and a maximum memory of 32GB; supports 8K video encoding and decoding, M.2 SATA / PCIe SSD hard disk, Gigabit Ethernet, expandable M.2 interface WiFi6, 4G wireless network, 8K HDMI and other video output interfaces, and supports multiple operating systems. It can be applied to edge computing, cloud terminals, servers, industrial control, ARM PC, smart display terminals, and other fields.


Soc

RK3588

Octa-core 64-bit (4*Cortex-A76+4*Cortex-A55), up to 2.4GHz
Gpu

ARM Mali-G610 MP4 quad-core GPU, Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
Npu

Up to 6 TOPs (INT8)

Support INT4/INT8/INT16 mixed operations and framework switching of TensorFlow / MXNet / PyTorch / Caffe
Vpu
  • Hardware decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
  • Hardware encoding: 8K@30fps H.265 / H.264
Ram

LPDDR4/LPDDR4x (4GB/8GB/16GB optional, up to 32GB)
Storage

eMMC (32GB/64GB/128GB/256GB optional)
Power

DC 12V (5.5 mm x 2.1 mm, voltage tolerance ± 5%)
Video output
  • 1 x HDMI 2.1 (8K@60fps or 4K@120fps)
  • 1 x HDMI 2.0 (4K@60fps)
  • 1 x DP1.4 (up to 8K@30fps, output via Type-C port)
Video input

1 x HDMI-IN (4K@60fps) Support HDCP 2.3
Audio output

1 x 3.5mm Audio jack
Audio output

1 x 3.5mm Audio jack
Os

Android, Linux OS
Dimension

188.0mm x 88.44 mm x 50.65mm
Environment
  • Operating temperature: -20℃～60℃
  • Storage temperature: -20℃～70℃
  • Storage humidity: 10%～90%RH (non-condensing)
Internet
  • 1 x 1000Mbps Ethernet (RJ45).
  • WiFi/BT modules can be expanded via M.2 E-KEY (2230) (internal device), supporting WiFi 6 and BT 5.2.
  • 4G LTE can be expanded via a Mini PCIe slot (internal device).
  • 5G can be expanded via USB 3.0.
Usb

2 x USB3.0 (Max: 1A)
Other

1 x Type-C (DP1.4 / OTG), 1 x SIM Card
Product tutorials Click Here
Sdk software and firmware files Click Here
