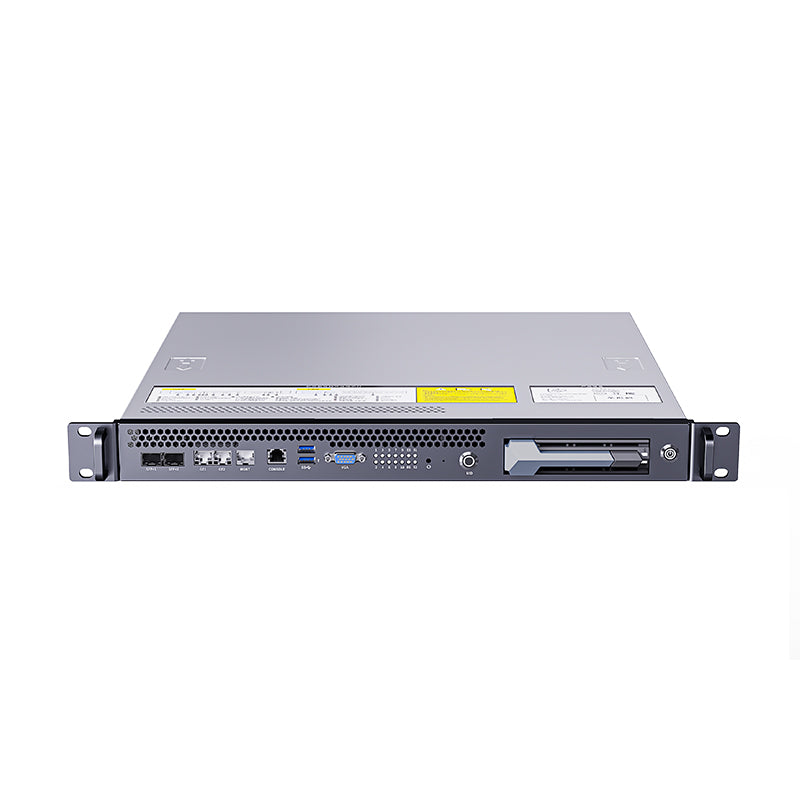

CSB1-N10R3588 Computing Power Server 60T Large Model Privatization Deployment 1U BMC Ruixin Micro

$3,389.00 USD
$3,389.00 USD
Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Collections:
$3,389.00 USD
$3,389.00 USD

CSB1-N10R3588 can be configured with up to 10 computing nodes. Each computing node is equipped with Rockchip's high-computing chip RK3588, with a maximum main frequency of 2.4GHz and a total computing power of up to 60 TOPS, providing a strong computing power guarantee for artificial intelligence and deep learning.

Server form

1U rack-mounted computing power server
Framework

ARM architecture
Number of nodes

10 distributed computing nodes (up to 80 ARM cores) + 1 control node
Compute nodes

Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz
Control nodes

Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, the highest computing power is 6TOPS
Ai computing power

60TOPS (INT8)
Fan module

6 high-speed cooling fans
Installation requirements
  • IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above
  • Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm - 848.5mm
Bmc

The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped
Large model

Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma-2B, ChatGLM3-6B, Qwen-1.8B, Phi-3-3.8B and other large language models
Deep learning

It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators
Console

1 × Console (RJ45, BMC debug serial port, baud rate 115200)
Soc

RK3588
Cpu

Octa-core 2.4GHz
Storage

256GB eMMC × 10 (Number of compute nodes)(Optional: 16GB/32GB/64GB/128GB/256GB)
Storage expansion

3.5-inch/2.5-inch SATA3.0/SSD hard drive slot × 1 (BMC can directly operate the hard drive, and computing child nodes can indirectly access the hard drive through the network sharing method provided by BMC)
Power

550W AC power supply (Input: 90V AC~264V AC, 47 Hz~63 Hz, 8A) (Hot swappable not supported)
Display

1 × VGA (maximum resolution 1080P, BMC management display)
Dimension

420.0mm(L) × 421.3mm(W) × 44.4mm(H)
Weight

Server net weight: 8.1kg, total weight with packaging: 10.3kg
Environment
  • Operating Temperature: 0ºC ~ 45ºC
  • Storage Temperature: -40ºC ~ 60ºC
  • Operating Humidity: 5% ~ 90%RH(non-condensing)
Internet

2 × 10G Ethernet (SFP+), 2 × Gigabit Ethernet (RJ45), 1 × Gigabit Ethernet (RJ45, MGNT is used as BMC management network)
Usb

2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG by using a USB flash drive)
Button

1 × Reset, 1 × UID, 1 × Power button
Other

1 × RS232 (DB9, baud rate 115200), 1 × RS485 (DB9, baud rate 115200)
Product tutorials Click Here
Sdk software and firmware files Click Here
