AIO-3588JQ 8K AI Industrial Motherboard

Regular price $459.00 USD
Regular price Sale price $459.00 USD
Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Regular price $459.00 USD
Regular price Sale price $459.00 USD

Soc

RK3588J Up to 1.6GHz

Octa-core 64-bit (4 x Cortex-A76 + 4 x Cortex-A55)

Gpu

ARM Mali-G610 MP4 quad-core GPU

Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS

Npu

Up to 6TOPs (INT8)

Support INT4/INT8/INT16 mixed operations

Support framework switching of TensorFlow / MXNet / PyTorch / Caffe

Vpu
  • Decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
  • Encoding: 8K@30fps H.265 / H.264
Ram

LPDDR4/LPDDR4x/LPDDR5 (industrial) (4GB/8GB/16GB, up to 32GB)

Storage

eMMC (16GB/32GB/64GB/128GB optional)

Storage expansion
  • 1 × M.2 SATA 3.0 SSD (2242)
  • 1 × TF Card
Pcie

1 x PCIe 3.0 (4 lanes)

Sata

1 x M.2 SATA 3.0

Power

12V (voltage tolerance ± 5%)

Power consumption

Min: ≈0.78W(12.0V/65mA)

Normal: ≈2.3W(12.0V/190mA)

Max: ≈9.6W(12.0V/800mA)

Video output
  • 1 × HDMI2.1 (8K@60fps or 4K@120fps), 1 × DP1.4 (8K@30fps, via USB-C)
  • 1 × VGA (1080P@60fps)
  • 1 × eDP1.3 (2K@60Hz), 2 × MIPI-DSI (4K@60fps) Support six-screen different display
Video input
  • 1 × HDMI-IN (4K@60fps), support HDCP 2.3
  • 1 × MIPI_CSI0 (1×4 lanes or 2 × 2 lanes, 30P-0.5mm)
  • 1 × BTB (1 × MIPI_CSI1 (4 lanes) or 2× MIPI_CSI1 (2 lanes) + 2 × MIPI_D/C (4 lanes DPHY v2.0 or 3-lane CPHY V1.1)
Os
  • Android and Linux OS
  • Support Kernel-based Virtual Machine (KVM) and Docker container technology
  • You can simultaneously run Android, Ubuntu, Debian, and Linux and achieve a “One Screen for One OS” display.

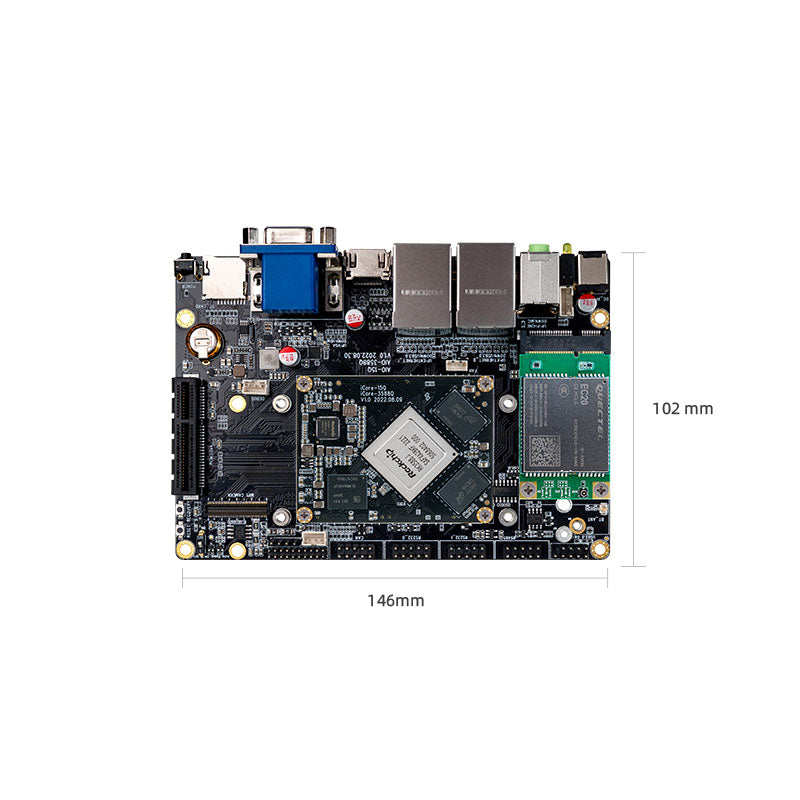

Dimension

146 mm x 102 mm x 37.5 mm

Environment
  • Operating temperature: -40℃~85℃
  • Operating humidity: 10%~90%RH (non-condensing)
Ethernet

2 × 1000Mbps Ethernet (RJ45)

Usb
  • 4 × USB 3.1 (Gen1)
  • 3 × USB 2.0 (pin)
  • 1 × USB-C (OTG/DP1.4)
