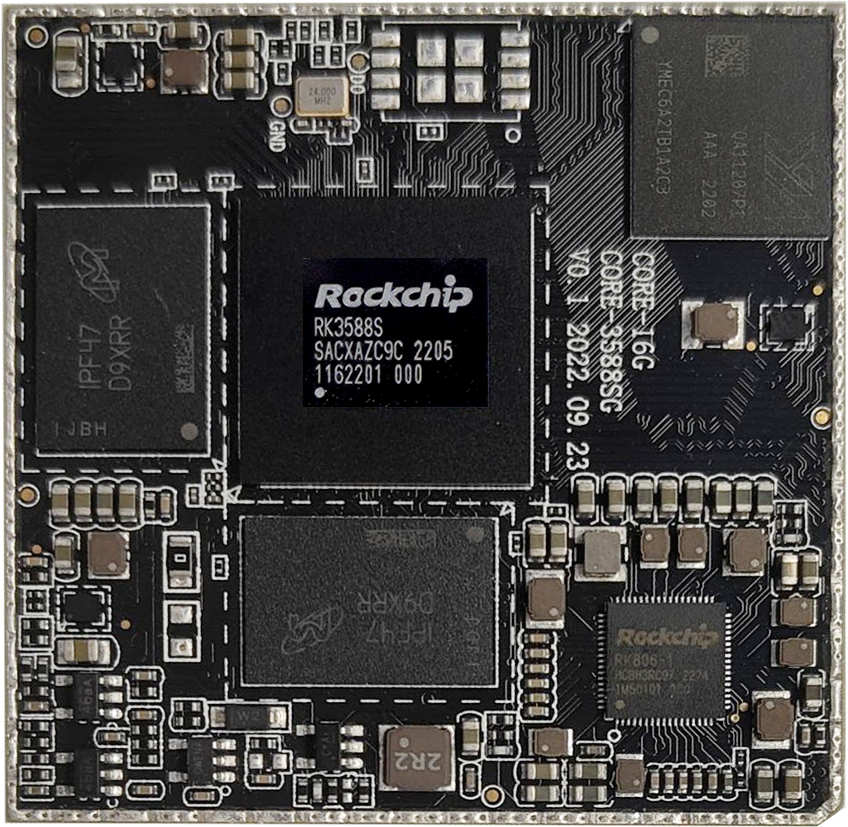

Core-3588SG 8K AI Core Board

$139.00 USD
$139.00 USD
Shipping calculated at checkout.
Brand: Firefly
Collections:
FireflyCore-1684XJD4 Octa-Core High Computing Power AI Core Board
Core-1684XJD4 Octa-Core High Computing Power AI Core Board

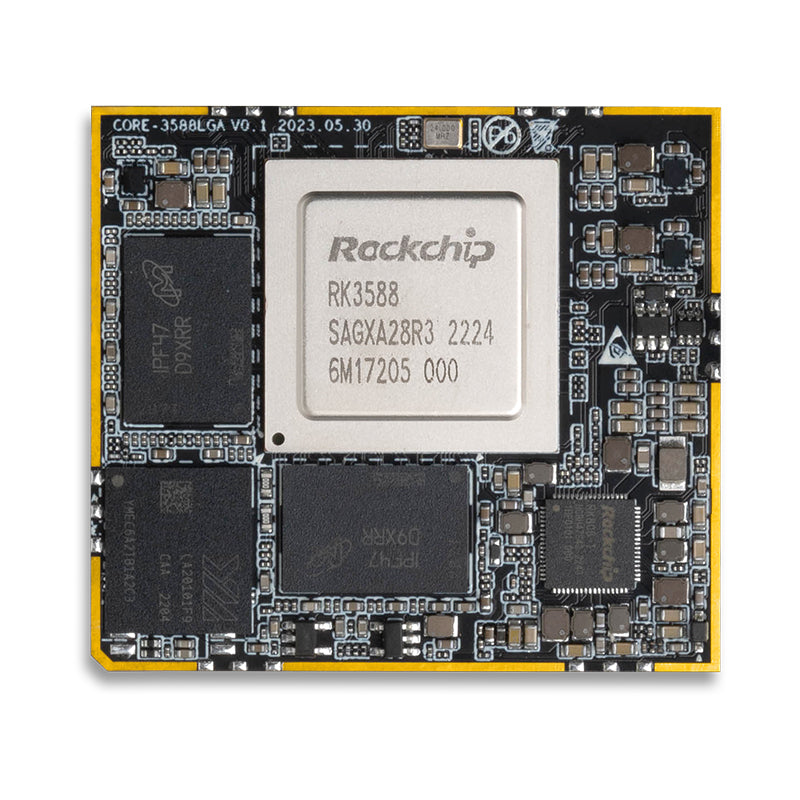

Core-3588L AI Core Board Powered by Rockchip RK3588 LGA package
FireflyCore-3588L AI Core Board Powered by Rockchip RK3588 LGA package
$139.00 USD
$139.00 USD

Soc

RockChip RK3588S
Cpu

Octa-core 64-bit (4 x Cortex-A76 + 4 x Cortex-A55), 8nm lithography process, frequency up to 2.4GHz
Ram

4GB/8GB/16GB (Up to 32GB optional) 64bit LPDDR4/LPDDR4x/LPDDR5
Storage

16GB/32GB/64GB/128GB/256GB eMMC
Pcie

2 x PCIe 2.0
Sata

2 x SATA3.0
Power

Voltage 4V (±5%), electric current 4A or higher recommended
Power consumption
  • Normal: 1.0W (4.0V/250mA)
  • Max: 11.2W (4.0V/2800mA)
  • Min (sleep): 0.06W (4V/15mA)
Video input
  • 2 x MIPI DC (4 Lane DPHY v2.0 or 3 Lane CPHY V1.1)
  • 1 x MIPI CSI (4 Lane) or 2 x MIPI CSI (2 Lane)
  • 1 x DVP camera interface (up to 150MHz data input)
Audio output
  • 1 x HDMI2.1 (8K@60fps or 4K@120fps)
  • 2 x MIPI-DSI (4K@60fps)
  • 1 x DP1.4 (8K@30fps)
  • 1 x eDP1.3 (4 Lane) (4K@60Hz)
  • 1 x BT.1120 (1080@60fps)

* Up to four-screen output with different displays can be achieved.
Audio output
  • 1 x HDMI2.1 (8K@60fps or 4K@120fps)
  • 2 x MIPI-DSI (4K@60fps)
  • 1 x DP1.4 (8K@30fps)
  • 1 x eDP1.3 (4 Lane) (4K@60Hz)
  • 1 x BT.1120 (1080@60fps)

* Up to four-screen output with different displays can be achieved.
Audio
  • 2 x 8 Lane I2S
  • 2 x 2 Lane I2S
  • 2 x SPDIF
  • 2 x 8 Lane PDM (support multi-Mic array)
  • 1 x dual-channel digital audio codec (16-bit DAC)
  • 1 x VAD
Os

Android 12.0, Ubuntu, Debian11, Buildroot, RTLinux, Kylin Linux
Dimension

50 mm x 50 mm
Weight

≈16g
Environment
  • Operating Temperature: -20℃～60℃
  • Storage Temperature: -20℃～70℃
  • Operating humidity: 10%～90% (non-condensing)
Network

Integrated GMAC/SDIO3.0/USB3.0 interface, expanded to GbE, WiFi6/Bluetooth and 5G/4G LTE
Interface type

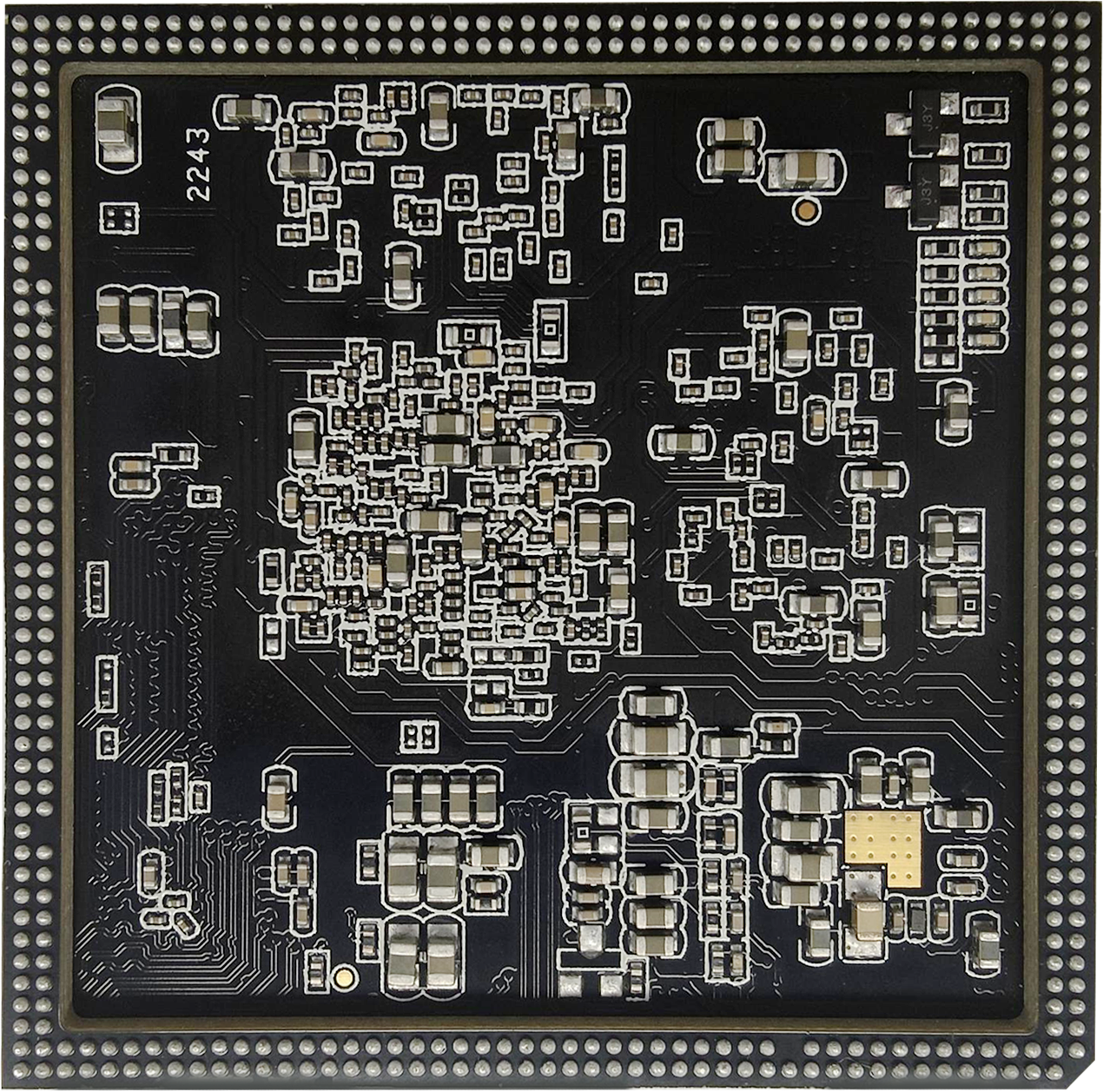

BGA371 (body: 50mmx50mm; ball size: 0.5mm; ball pitch: 1.0mm)
Other interface
  • 9 x I2C
  • 10 x UART
  • 5 x SPI
  • 12 x ADC
  • 3 x CAN
  • 16 x PWM
  • 1 x SDMMC
  • Multiple GPIO
Usb

3 x USB3.0, 2 x USB2.0(Host), 1 × USB2.0 (OTG)
Product tutorials Click Here
Sdk software and firmware files Click Here
