AIO-3588SG Octa-Core 8K AI Mainboard

$299.00 USD
$299.00 USD
Shipping calculated at checkout.
Brand: Firefly
Collections:

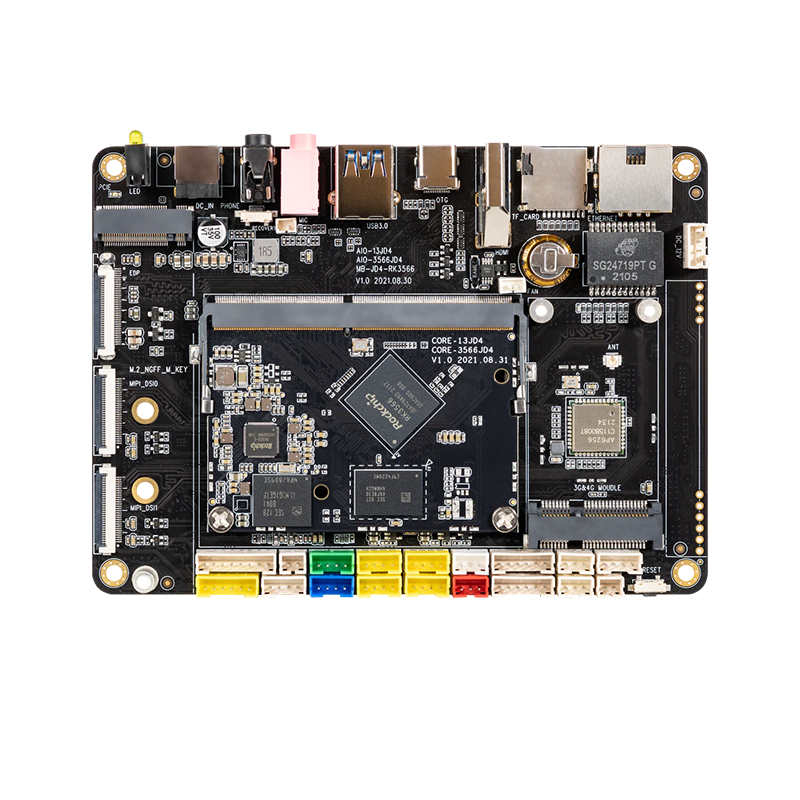

FireflyAIO-3566JD4 Quad-Core 64-Bit AI Development Board
AIO-3566JD4 Quad-Core 64-Bit AI Development Board
AIO-3562JQ Cost-Effective Industrial Mainboard Operating temperature: -40℃- 85℃
FireflyAIO-3562JQ Cost-Effective Industrial Mainboard Operating temperature: -40℃- 85℃
$299.00 USD
$299.00 USD


Soc

RockChip RK3588S
Cpu

Octa-core 64-bit (4 x Cortex-A76 + 4 x Cortex-A55), 8nm lithography process, frequency up to 2.4GHz
Vpu

Video decoding:

  • 8K@60fps H.265/VP9/AVS2
  • 8K@30fps H.264 AVC/MVC
  • 4K@60fps AV1
  • 1080P@60fps MPEG-2/-1/VC-1/VP8

Video encoding:

  • 8K@30fps encoding
  • support H.265 / H.264
Ram

4GB/8GB/16GB (Up to 32GB optional) 64bit LPDDR4/LPDDR4x/LPDDR5
Storage

16GB/32GB/64GB/128GB/256GB eMMC
Power

12V (±5%), 2.5A and higher (PD power adapter is recommended)
Power consumption
  • Max：15.6w (12V/1.3A)
  • Normal: 5w (12V/0.42A)
  • Mini: 0.18w（12V/15mA）
Video output
  • 1 x MIPI-DSI (up to 4K@60fps)
  • 1 x DP1.4 (up to 8K@30fps)
  • 1 x eDP1.3 (4 Lanes /up to 4K@60Hz)
    *Up to three-screen output with different displays can be achieved
Video input
  • 1 x MIPI-CSI （30P-0.5mm 1 x 4Lane or 2 x 2lanes 2.5Gbps/lane）
Audio
  • 1 x DP1.4 audio output
  • 1 x Speaker (it is connected to the 4Pin of Header-40P-2.0mm)
Os

Android 12.0, Ubuntu, Debian11, Buildroot, RTLinux, Kylin Linux
Dimension

88mm x 81mm
Weight

≈71g
Environment
  • Operating Temperature: -20℃～60℃
  • Storage Temperature: -20℃～70℃
  • Operating humidity: 10%～90%RH (non-condensing)
Wireless network

2.4G/5GHz dual-band WiFi6, 802.11 a/b/g/n/ac/ax, Bluetooth 5.0
Ethernet

Gigabit Ethernet (1000Mbps) x 1
Other interface
  • Header-40P-2.0mm (CAN/UART/VCC/USB2.0/I2C/SPI/SARADC/SPEAKER/Debug)
  • FPC-40P-0.5mm (DPHY0-RX/DPHY0-TX/DPHY1-RX)
Usb
  • 1 x USB3.1 (Gen1)
  • 3 x USB2.0 (one of them is connected to the 4Pin of Header-40P-2.0mm)
  • 1 x USB-C (DP1.4(8K@30fps)/OTG/PD fast charging)
Product tutorials Click Here
Sdk software and firmware files Click Here
