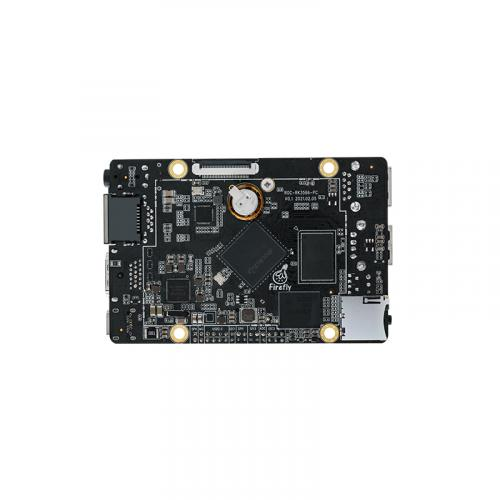

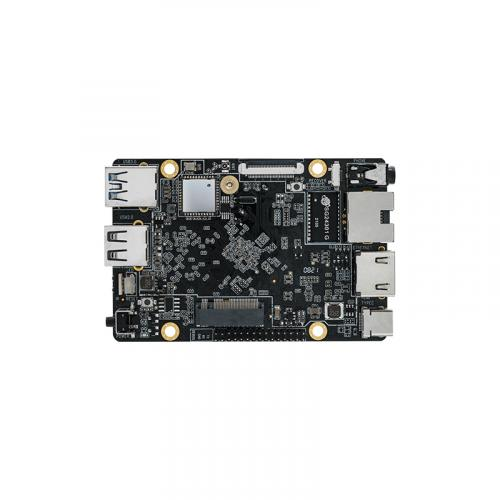

ROC-RK3566-PC Quad-Core Rockchip Mini Single Board Computer

Regular price $339.00 USD
Regular price Sale price $339.00 USD
Shipping calculated at checkout.
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Regular price $339.00 USD
Regular price Sale price $339.00 USD

ROC-RK3566-PC Quad-Core 64-Bit mini single board computer equipped with a Rockchip RK3566 quad-core 64-bit processor, the mini-computer supports 8G of RAM. An M.2 interface enables expansion with a large hard drive. Various systems and boot methods are supported—with the dedicated application programs and forums, geek fun is endless.



Soc

RockChip RK3566

Cpu

Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 1.8GHz

Gpu

ARM G52 2EE

Supports OpenGL ES 1.1/2.0/3.2. OpenCL 2.0. Vulkan 1.1

Embedded high-performance 2D acceleration hardware

Vpu

Supports 4K 60fps H.265/H.264/VP9 video decoding

Supports 1080P 60fps H.265/H.264 video encoding

Supports 8M ISP

Ram

2GB / 4GB / 8GB LPDDR4 32Bit,supports all-data-link ECC

Storage

32GB / 64GB / 128GB eMMC

M.2 PCIe 2.0 × 1 (Expand with 2242 NVMe SSD)

TF-Card Slot x1 (Expand with TF card)

Wireless

Supports 2.4GHz/5GHz dual-band WiFi,802.11 a/b/g/n/ac

Supports BT5.0

Power

5V (Via Type-C port)

Display

1 × HDMI2.0. Supports 4K@60fps output

1 × MIPI DSI. Supports 1920*1080@60fps output (or dual-channel 1 × MIPI DSI 2560*1440@60fps)

Os

Supports Android 11.0, Ubuntu 18.04, Buildroot + QT, Station OS

Dimension

90.0 mm × 60.0 mm

Environment

Operating Temperature: -10℃~60℃

Storage Temperature: -20℃~70℃

Storage Humidity: 10%~80 %

Ethernet

Supports Gigabit Ethernet (RJ45. 1000 Mbps)
