  5. AIBOX-186 Artificial Intelligence Deepseek 6T Large Model Privatization Deep Learning Computing CV186AH
By Firefly

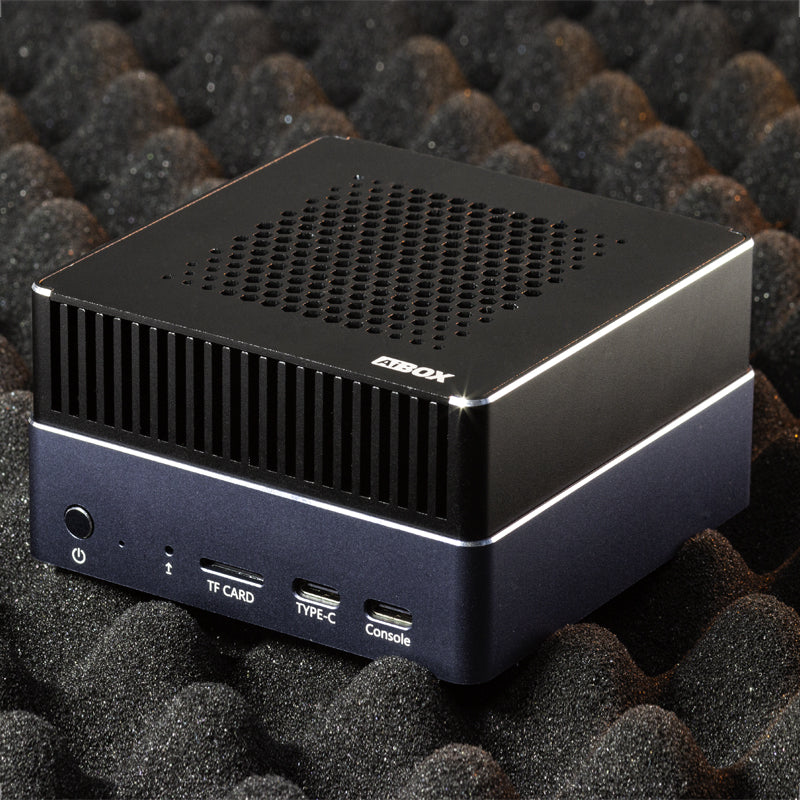

AIBOX-186 Artificial Intelligence Deepseek 6T Large Model Privatization Deep Learning Computing CV186AH

$179.00 USD
$179.00 USD
Shipping calculated at checkout.
Brand: Firefly
Collections:
FireflyAIBOX-3588 Artificial Intelligence 6T Large Model Privatization Deployment Edge Computing Ruixin Micro-Deepseek
AIBOX-3588 Artificial Intelligence 6T Large Model Privatization Deployment Edge Computing Ruixin Micro-Deepseek
AIBOX-1684 Computing 17.6T Deep Learning Deepseek Multi-Channel Video Decoding BMNNSDK2 Computing Energy
FireflyAIBOX-1684 Computing 17.6T Deep Learning Deepseek Multi-Channel Video Decoding BMNNSDK2 Computing Energy
$179.00 USD
$179.00 USD

Soc

SOPHON CV186AH
Cpu

Hexa-core ARM Cortex-A53 @1.6GHz
Tpu

7.2T@INT8, 12T@INT4, and 1.5T@FP16/BF16 computing power
Vpu
  • Video decoding: H.264 / H.265 decoding (Max performance: 1920 x 1080@480FPS or 3840 x 2160 @120FPS)
  • Video encoding: H.264 / H.265 encoding (Max performance: 1920 x 1080@300FPS or 3840 x 2160 @75 FPS)
  • Image codec: JPEG/MJPEG Baseline codec (JPEG codec with a maximum resolution of 1080P@480 FPS)
Ram

4GB LPDDR4 (4GB/8GB/16GB optional)
Storage

32GB eMMC (32GB/64GB/128GB/256GB optional)
Storage expansion

1 x M.2 (Expandable PCIe NVMe SSD(default support)/ SATA SSD(supported after software update), supports 2242/2260/2280) (inside the device), 1 x TF Card
Power

DC 12V/3A(DC 5.5*2.1mm)
Power consumption
  • Normal: 6W(12V/500mA)
    Max: 10.8W(12V/900mA)
Video output

1 x HDMI2.0 (4K@60fps
Os

Linux
Software support
  • The private deployment of ultra-large-scale parameter models under the Transformer architecture, including large language models such as Gemma-2B, LlaMa2-7B, ChatGLM3-6B, Qwen1.5-1.8B.
  • A variety of deep learning frameworks, including TensorFlow, PyTorch, TensorRT, TFLite, PaddlePaddle, Caffe, and ONNX, as well as custom operator development
  • Docker container management technology
Dimension

93.4 mm × 93.4mm × 50 mm
Weight

≈ 500g
Environment
  • Operating Temperature: -20℃～60℃
  • Storage Temperature: -20℃～70℃
  • Storage Humidity: 10%～90%RH (non-condensing)
Ethernet

2 x 1000Mbps Ethernet
Usb

2 x USB3.0 (Current Limit: 1A)
Other
  • 1 x Type-C (USB 2.0 device mode only),
  • 1 x Console (Debug serial),
  • 1 x Power button,

1 x Recovery
Product tutorials Click Here
Sdk software and firmware files Click Here
